N80 Hilux (2015-2023) Power Distribution Module
MIL-SPEC DESIGNS
Does not fit 48V models!

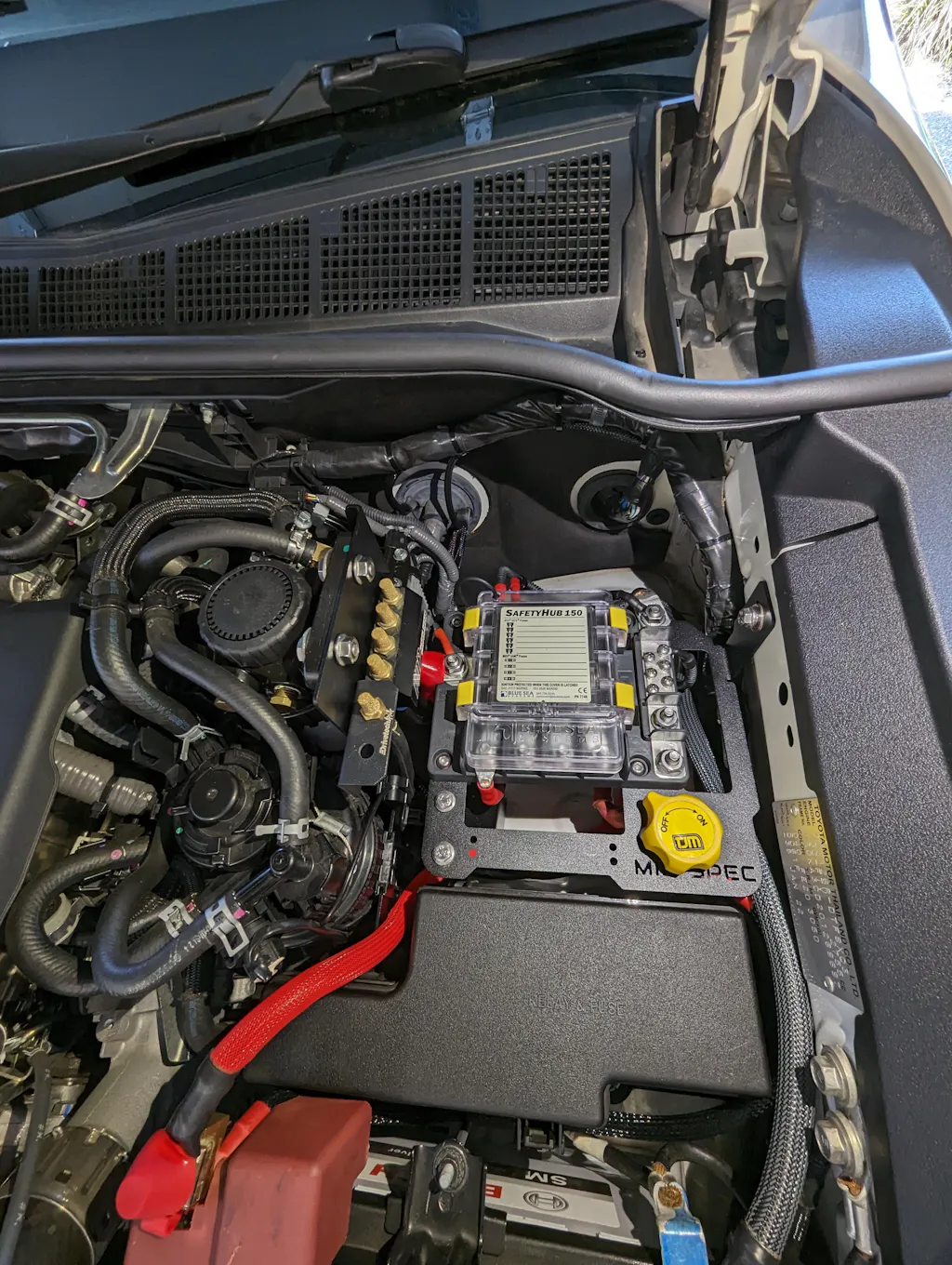

The N80 power distribution module is the complete, high-power accessory, for your 12-volt build. With so much space to play with in the N80 engine bay, we’ve upgraded to an even larger PDM unit, which features 6 ATO blade fuses, 4, high power MIDI fuses, 350A positive input, and an inbuilt, negative/earth busbar.
This system is the ultimate setup for your N80, allowing you to create the perfect 12-volt setup for your specific needs!
What's in the standard kit?
- Blue Sea Systems PDM unit (6 ATO blade fuses, 4 MIDI fuses, single positive input, multi sized earth bar)
- Stainless mounting plate and required brackets/fixings
- TJM safety switch/isolator
- 8-way terminal screw block
- 300A main positive input cable
- 300A main earth cable
- 4x 90° lugs (your choice on size)
- 4x lengths of Raychem heat shrink (for the lugs)
- 7x TE Connectivity, PIDG ring terminals
- 300A marine grade Bussmann main battery fuse + holder

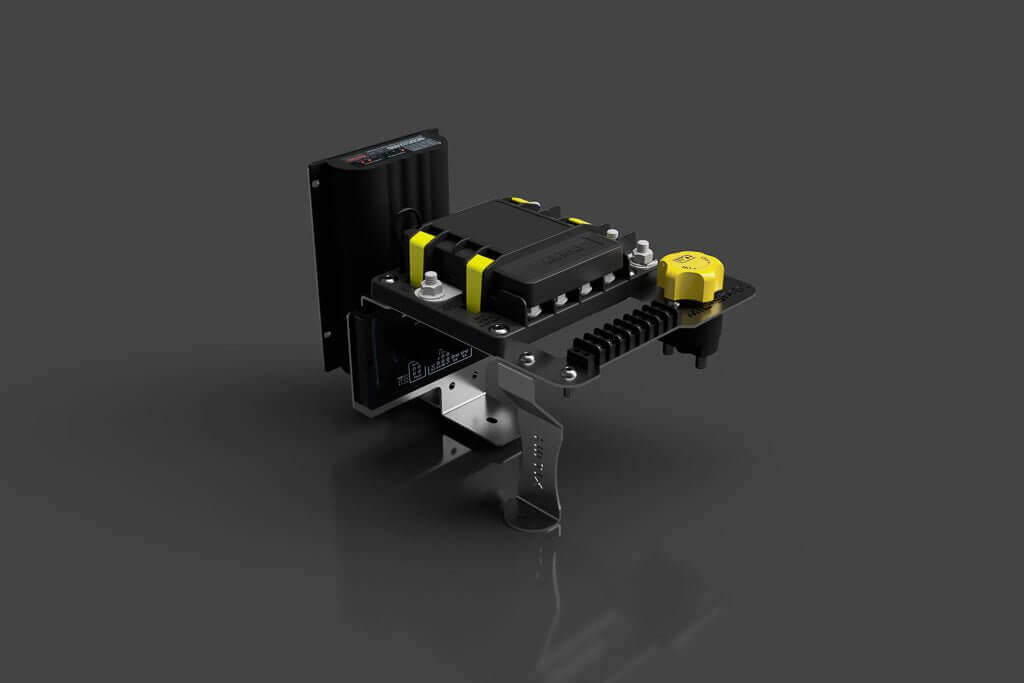

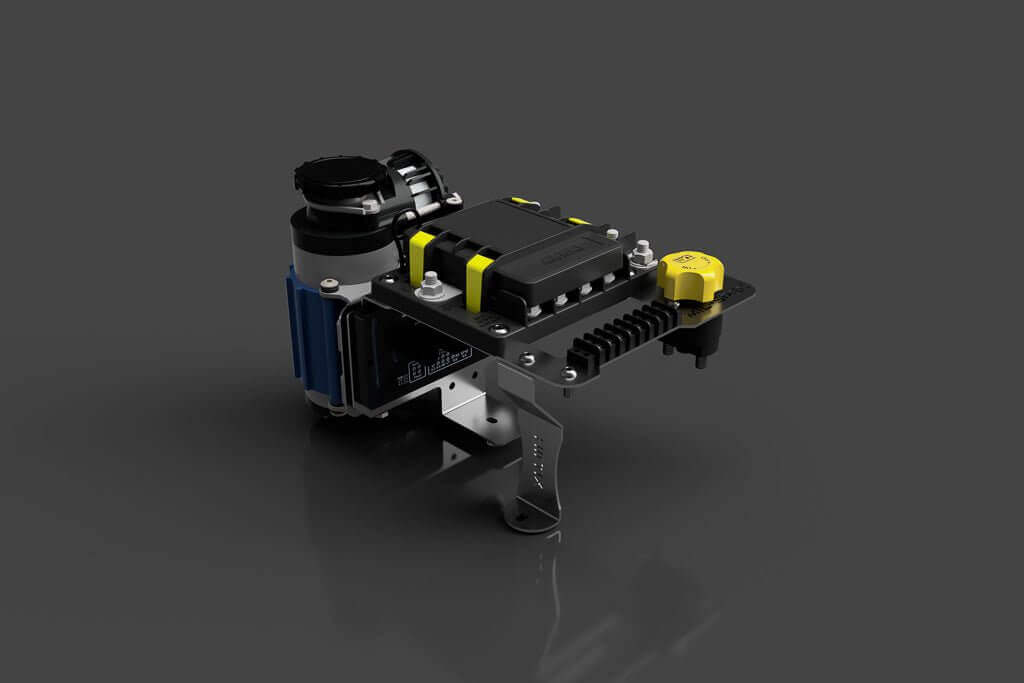

You can also choose to add standard 50A relays, or a switch pros 9100 unit to your kit. There is also the option to add an addition mounting bracket for a Redarc BCDC charger, or ARB single air compressor.
Below is an example wiring diagram of one of the numerous ways the unit can be wired:
