DOES NOT FIT COLORADO MODELS, OR DMAX MODELS AFTER 2016 DUE TO DIFFERENT BATTERY CLAMP!
The Dmax basic setup kit is the perfect addition for your late model Dmax's 12-volt setup! Weather it's a stock vehicle and you're wiring in add-ons for the first time, or you're re-doing an existing spaghetti mess, this fuse block kit is right for you!
This is our first kit that comes in two sections, a main plate, and a winch isolator/battery switch plate. Splitting up the system means less space is used towards the back of the battery, allowing for aftermarket filters (yet to be confirmed).
All 12-volt components are pre-fitted to the plates, making installation quicker and easier for you. The sleek design of the kit is sure to give your wiring that professional look, along with strategically placed wire slots and cable entries, to hide the majority of the wiring.
As this unit sits above the fuse box, if access is required to the fuse box, the plates can simply be un-bolted from their bracket, and moved to the side, allowing access.

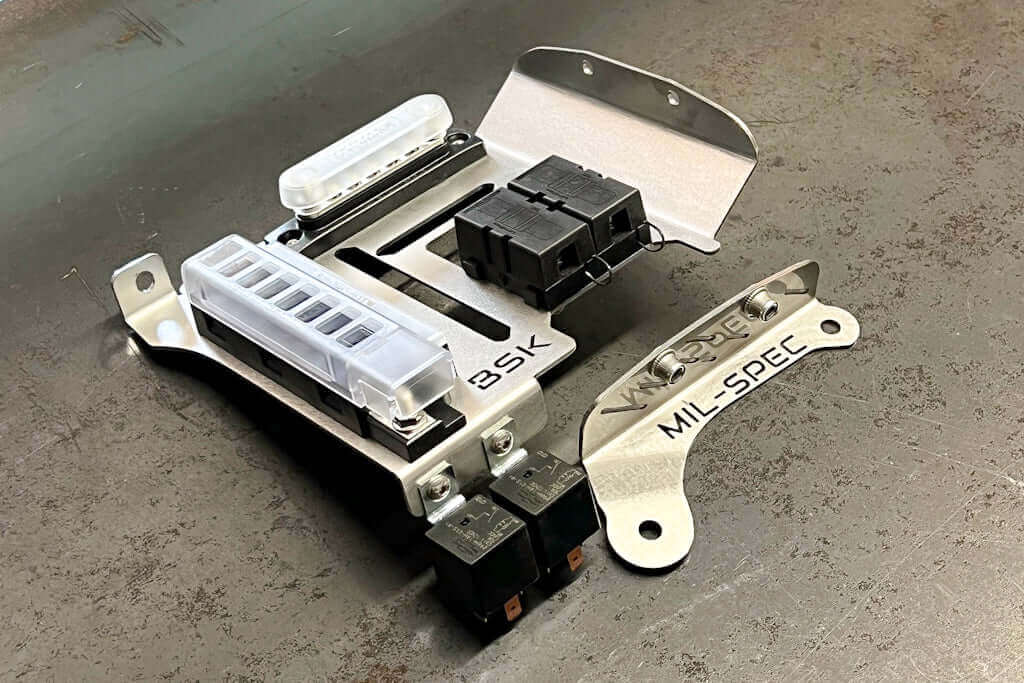

What's in the kit:
- Main mounting plate and fixings
- Main mounting bracket
- Isolator plate and fixings
- Isolator bracket
- Blue Sea Systems 8 way fuse block
- Blue Sea Systems negative buss-bar
- Dual Littlefuse MIDI fuse holders
- TJM safety switch
- 3x Song Chuan 50A relays (mounting points for up to 5)
- 8x 12 AWG uninsulated ring terminals
- 5x 12 AWG uninsulated ring terminals for the negative buss-bar
- Raychem adhesive heat shrink for all ring terminals
- Your choice of MIDI cable lug size
